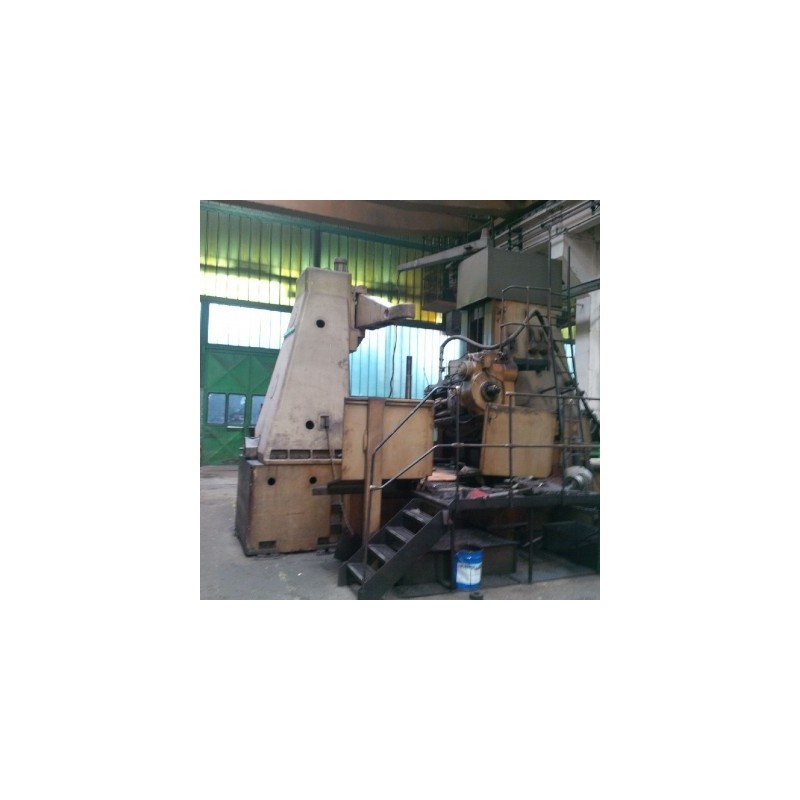

Wmw Modul Zfwz 3150

Manufacturer: WMW, Germany
Model:ZFWZ 3150
Year:1970
Location: Romania

Technical Details:

max. wheel diamter 3150 mm
min. wheel diameter 500 mm
max. wheel diameter with outboard-support 1600 mm
max. module 30 mm
gear width 1000 mm
max. helical angle 45 deg
tangential adjustment 500 mm
cutter length max. 440 mm
diameter of cutter (hob) 350 mm
table diameter 2400 mm
table bore diameter 500 mm
depth of hole 1100 m
table load max. 30 t


Description: original installation, good conditions, acccessoties
