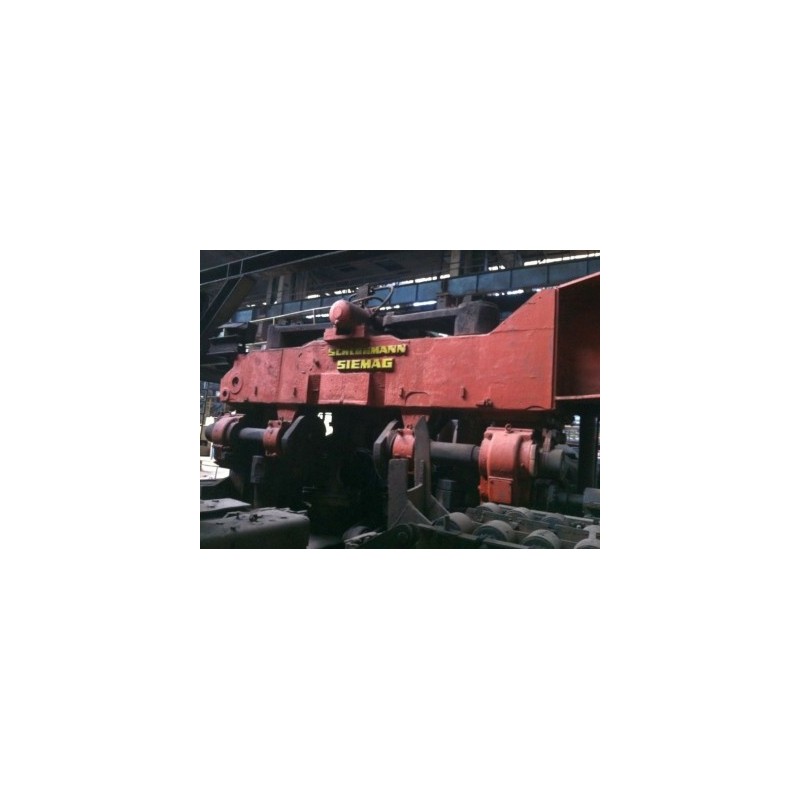

Schloemann 1400 Mm Wheel Rolling Mill

Manufacturer: SCHLOEMANN
Year:1975
Location: Romania
Technical Details:
• Main pressure roll
o Diameter of the pressure roll 1650mm
o Main driving 120 KW DC motor with 0-120 rpm
o Reducer gear box with transmission rate 58/1
o Rotation of the pressure roll 0-20.6 rpm
o Peripheral speed 1.78 m/sec
o Pressure on wheel 123 to 200 bar
•Dish rolling rolls 2 pcs
o Rolls diameter 425mm
o Driving 2 DC motors of 320KW and max 500rpm
o Gear box reducer with rate 7.5/1
o Rotation of the dish rolls 0-66.7 rpm
o Peripheral speed 1.48m/sec
o Pressure on the wheel 69.2 to 200 bar
•Crown rolling rolls 2 pcs
o Rolls diameter 494/280 mm
o Motor 15KW; 750 rpm
o Pressing force 50 ton
•Guide rolls
o Diameter 360mm
o Driving free
o Pressing force 30.8 ton
